itaps-parallel Diagram of set-based parallel data

[Tim Tautges]

Hi all,

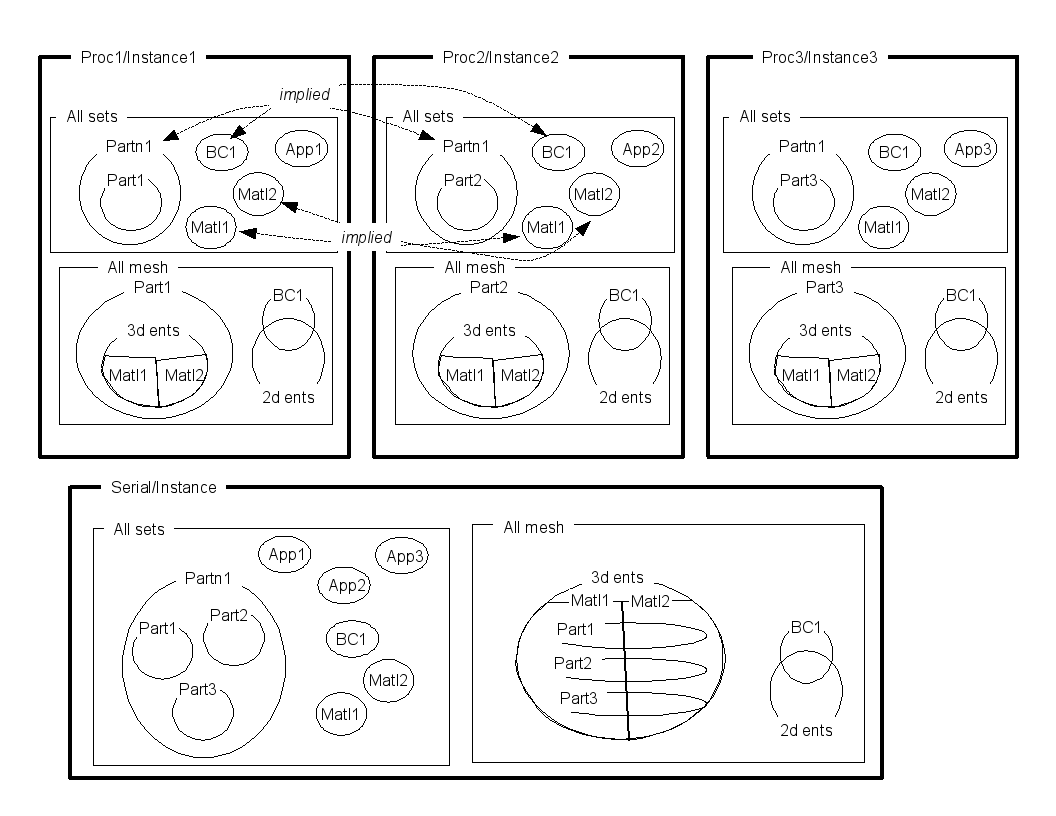

   As promised, attached is a cartoon describing set-based parallel
data.  Note I've stuck to the simplest example (as wisely advocated by
Mark S).  I show the representation of the same mesh in the serial and
3-processor cases.  I don't show ghosted elements, for simplicity,
though those "fit" in the model.

PARALLEL

In the parallel representation, each processor has a set it understands
as "partition1" (labeled "Partn1").  In this example, on each processor,
that set contains one set corresponding to the part assigned to that
processor.  The part set contains 3d entities assigned to that
processor.  In this example, all 3d entities are objects in the
decomposition, therefore each 3d entity is a member of exactly one Part.

There are other entity sets defined in this mesh, including a boundary
condition set (BC1), material sets (Matl1, Matl2), and
application-defined sets (App1-App3).  In this example, the BC1 set
contains faces in the mesh (2d elements), but not all of them.  Matl1
and Matl2 are meant to form a covering over 3d elements, defining the
materials for those elements.  Application-defined sets are for
arbitrary groupings.  Whether such "shared" sets would exist on
processors even if there were no set contents on those processors is
currently implementation-defined, though maybe there should be a common
convention for that.

Some of the sets on each processor are implicitly linked with sets on
other processors.  For example, the Partn1 set on each processor is
linked to the corresponding sets on other procs.  For this set, that
means that if the mesh were ever to be assembled in a single file, the
contents of Partn1 on various processors would all go into a single set,
which would be assigned the union of all tags on that set on all
processors.  Presumably those tags would all be the same.  Similarly,
BC1 and Matl1, Matl2 are sets that are implicitly linked and which would
be combined.  App1-App3 are application-defined sets which would be
considered separate, even if the mesh was written to a single file.
Note that the decision or designation of which sets across the
processors are really the same sets is application- or
implementation-defined.  In MOAB, we do it based on tag and optionally
tag value.  So, for example, any set with a "MATERIAL_SET" tag whose
value is the same is understood to be the same set.  This is used in the
HDF5-based file writer in MOAB, which writes a single file in parallel
from all processors.

SERIAL

In the serial case, all sets having implicitly-defined counterparts on
other processors have been combined.  Thus, part sets (Part1-Part3) are
contained in the Partn1 set, and there are single BC1, Matl1 and Matl2
sets.  App1-App3 are still separate, since they were not designated to
be the same sets.  The Part1-Part3 sets and Matl1-Matl2 sets are
different coverings of all 3d entities in this mesh for this example.
The BC1 set includes a subset of 2d entities in the mesh.

DISCUSSION

As I've mentioned before, I've implemented MOAB's parallel reader such
that any collection of sets which forms a covering over the things I
want to partition can be used to define the partition.  Thus, in this
example, one could use Matl1/Matl2 as the part sets.  In this case,
those sets would serve multiple purposes.  Similarly, I don't see any
reason we shouldn't allow a given part set to be a member of multiple
partitions.

Part sets should also be allowed to include sets; in this case, maybe
the sets are the objects in the partition.  This would be a very nice
thing to use for e.g. hypergraph partitioning methods.
Counter-intuitively, I would lean toward using contains relations to go
down that hypergraph hierarchy.  If a given implementation did not
implement Parts as legitimate entity sets, then this property could be
used to reduce bookkeeping for adaptive applications, e.g. have the part
contain sets which themselves contain 3d elements of a given material or
geometric volume.  Of course, that assumes you're using sets for those
other things...

This method for representing partitions also has the following benefits:
- allows multiple partitions to exist in the same file/instance/database
- would allow current set operations to be used to query contents of
parts and partitions
- parallel view is only different when asking about parallel data; in
other cases it looks the same as serial interface
- other parts of RPI partition model can be embedded similarly, by using
sets related to part sets using parent/child relations

I'll be elaborating on this at the SIAM mtg in March, as well as pulling
in other examples where sets can be used to do various things.  I guess
that means I've already started my talk, which has to be some sort of
record for me!

Comments welcome, fire when ready!

- tim



--
================================================================
"You will keep in perfect peace him whose mind is
   steadfast, because he trusts in you."               Isaiah 26:3

              Tim Tautges            Argonne National Laboratory
          (tautges at mcs.anl.gov)      (telecommuting from UW-Madison)
          phone: (608) 263-8485      1500 Engineering Dr.
            fax: (608) 263-4499      Madison, WI 53706
